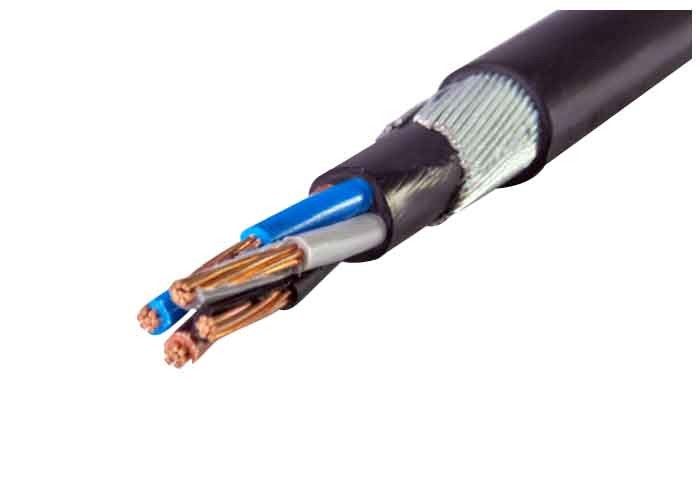

PVC Insulated Power Cable All Sizes LV Copper Cable KEMA Qualified

محصولات

کابل مشعل جوشکاری

با ما تماس بگیرید

Mr. William

sales1@holdonecable.com

86-- 18724796885

+86 19026815676

حالا تماس بگیرید

PVC Insulated Power Cable All Sizes LV Copper Cable KEMA Qualified

مقدار تولیدی:	300 متر
قیمت:	0.3-159 USD/Meter
بسته بندی استاندارد:	15 روز کاری
دوره تحویل:	5000KM در هر ماه
روش پرداخت:	L / C ، D / A ، D / P ، T / T ، Western Union، MoneyGram، Stand by LC

جزئیات اطلاعات

توضیح محصول

اطلاعات دقیق

محل منبع

چين

نام تجاری

QINGDAO YICABLE CABLE

گواهی

IEC,KEMA,ISO,CE,GOST

نام مدل:

YJV32

اندازه:

1.5mm2 -800 mm2

کارایی:

تنش شدید

نمونه:

20 سانتی متر رایگان

کاربرد:

نصب زیر زمینی

ولتاژ:

600 / 1000V

برجسته کردن:

pvc insulated copper wire,pvc sheathed wiring

pvc sheathed wiring

توضیح محصول

PVC Insulated Cables all sizes LV Copper cable KEMA qualified Shanghai Manufacturer

Brief Description:

0.6/1kV PVC cables (plastic power cable) is one of high quality products of our company.

The product not only has good electric capability, but also has good chemical stabilization,

simple structure, easy to use, and the laying of cable do not be limited by the fall.

Application:

It is widely used at the transformer circuit which rated voltage is 6000V or under.

Specification:
The product is produced against IEC60502 and IEC60331, .

And the product can be produced against the standard of BS, DIN, and the standard required by the clients.

Features:
1. The long-term permissible operation temperature of the conductor shall not be higher than 70°C.
2. The max temperature of the conductor of cable should less then 160 °C when short circuit. (less then 5 second).
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0°C.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame resistant

5. Light weight, perfect bending properties, installed and maintained easily and conveniently.
6. Rated voltage: 0.6/1kV, 3.6/6kV.
7. Number of cores: One, two, three, four, five.

8.Cable laying, bend radius≥10 times cable O. D.

Package:In coils, wooden drums, steel drums or steel-wooden drums.

We could producing according to the customers' requirements.Welcome your request for any quotations!

Type	Name	Usage
VV	PVC insulated PVC sheathed power cable	Can be laid at indoor, tunnel and tube. Cable cannot under take mechanism outside force
VLV
VY	PVC insulated and PE sheathed power cable	Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force
VLY
VV22	PVC insulated steel belt armored and PVC sheathed power cable	Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force
VLV22
VV23	PVC insulated steel belt armored and PE sheathed power cable	Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force
VLV23
VV32	PVC insulated fine steel wire armored PVC sheathed power cable	Can be laid at indoor, underground and mining well. Cable can undertake mechanism outside force
VLV32
VV33	PVC insulated fine steel wire armored PE sheathed power cable	Can be laid at indoor, underground . Cable can under take mechanism outside force
VLV33
VV42	PVC insulated thick steel wire armored PVC sheathed power cable	Can be laid at indoor, underground,mining well. Cable can under take mechanism outside force
VLV42
VV43	PVC insulated fine steel wire armored PE sheathed power cable	Can be laid at indoor, underground,mining well and the places of be terrible polluted. Cable can under take mechanism outside force

PVC Insulated Power Cable All Sizes LV Copper Cable KEMA Qualified 0
