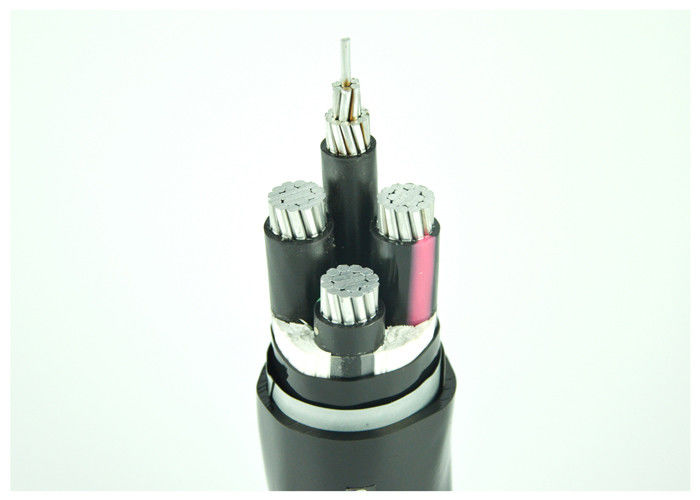

Low Voltage Aluminum Armoured Electrical Cable 3+1 Core Al/PVC/PVC Power Cable with Steel Tape Armour

مقدار تولیدی: 1000 متر
قیمت: US$0.25~99 per Meter
بسته بندی استاندارد: طبل ها
دوره تحویل: 7-15 روز
روش پرداخت: T/T، اعتبارات اسنادی
ظرفیت عرضه: 10،000 کیلومتر در هر ماه
جزئیات اطلاعات
توضیح محصول
اطلاعات دقیق
محل منبع
چين
نام تجاری
QINGDAO YICABLE CABLE
گواهی
ISO,CE,IEC,TUV,KEMA
نام مدل:
کابل آلومینیومی LV
ولتاژ:
ولتاژ پایین
عایق:
پی وی سی
رهبر ارکستر:
AL ، آلومینیوم
زره پوش:
نوار استیل ، گالوانیزه
اندازه ها:
1 ~ 630mm2
غلاف:
پی وی سی
استاندارد:
IEC / BS / IS / VDE
برجسته کردن:

armored electrical wire,armoured power cable

,

armoured power cable

توضیح محصول

Low Voltage Aluminum Armoured Electrical Cable 3+1 Core Al/PVC/PVC Power Cable with Steel Tape Armour


Cable Structure

Conductor : Compact stranded aluminum conductor, Cl.2 as per IEC 60228
Insulation : PVC rated at 75OC
Inner covering : PVC
Armoring : Galvanized steel tape
Sheath : PVC type ST2 to IEC 60502, black




Applications

Apply to shafts,water and soil,able to bear the larger positive pressure.





Standards

International: IEC 60502, IEC 60228, IEC 60332
China: GB/T 12706.1-2008
Other standards such as BS,DIN and ICEA upon request



Technical data

Rated voltage: Low Voltage, 0.6/1kV
Maximum Conductor Temperature: under normal (75°C), short circuit no more than 5 s (160°C) conditions.
Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position
12 x cable O.D for multi-core armoured cables


TypeDesciptionRated VoltageNO. of CoresNomibal section(mm2)Applications
YJV YJLVCu or Al conductor,XLPE insulated.PVC sheathed electric cable0.6/1KV1,2,3,41.5 to 400For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces.
3+13×4+1×2.5 to 3×400+1×185
6/6kV1,325 to 500
8.7/10kV 8.7/15kV 12/20kV125 to 500
325 to 300
21/35kv150 to 500
YJV22 YJLV22Cu or Al conductor,XLPE insulated steel tape armoured PVC sheathed electric cable0.6/1KV31.5 to 400Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.
44 to 240
6/6kV 8.7/10kV 8.7/15kV 12/20kV325 to 300
21/35kv350 to 240




PVC Insulation Electric Cable


TYPE

Description of Cable


Main Applications


CU coreAL core
VVVLVCopper/Aluminium core,PVC insulated,PVC sheathed power cableNon-armoured PVC cable are suited for laying indoors,In cable trench,On cable racks and in pipes. Unable bear external pressures and tensions.
VYVLYCopper/Aluminium core,PVC insulated,PE sheathed power cable
VV22VLV22Copper/Aluminium core,PVC insulated,steel tape armored,PVC sheathed power cableSteel-tape armoured PVC cables are suited for vertical burial.Can bear moderate positive pressures,Unable bear tension forces.
VV23VLV23Copper/Aluminium core,PVC insulated,steel tape armored,PE sheathed power cable
VV32VLV32Copper/Aluminium core,PVC insulated,thin steel wire armored,PVC sheathed power cableThin steel wire armoured PVC cables are used in case of great difference of levels or vertical installation and Can do vertical burial.Can bear moderate positive pressures and tension forces.
VV33VLV33Copper/Aluminium core,PVC insulated,thin steel wire armored,PE sheathed power cable
VV42VLV42Copper/Aluminium core,PVC insulated,thick steel wire armored,PVC sheathed power cableThick steel wire armoured PVC cables are suited for vertical installation and can be laid water or sea-bottom.Can bear greater positive pressures and tension forces.
VV43VLV43Copper/Aluminium core,PVC insulated,thick steel wire armored,PE sheathed power cable



Low Voltage Aluminum Armoured Electrical Cable 3+1 Core Al/PVC/PVC Power Cable with Steel Tape Armour 0



PACKING AND SHIPPING



We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.






AFTER-SERVICE COMMITMENT



Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!

Shanghai Shenghua Cable (Group) Co., Ltd.
