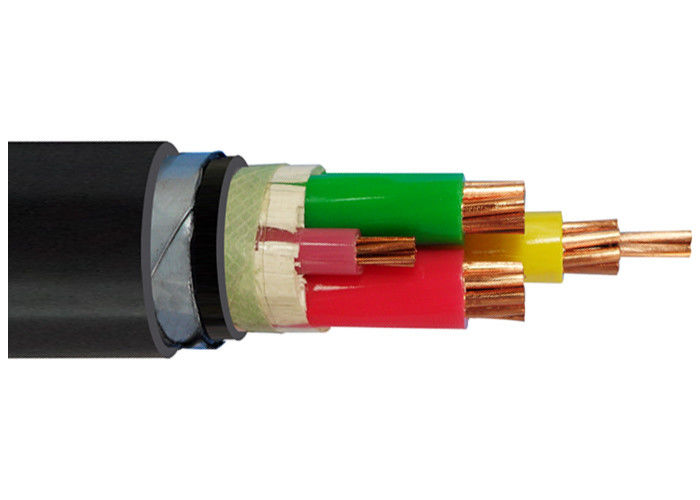

Black Copper Conducor Armoured Electrical Cable With Steel Tape Armoued

Conductor

Compact Stranded Copper Conductor, Class 2 as per IEC 60228

Circular solid Copper Conductor, Class 1 as per IEC 60228

Insulation

XLPE(Cross-linked polyethylene)

Filler

PP Filler

Wrapping Tape

Non woven

Inner Covering

Extruded PVC

Armour

Steel Wire

Overall Sheath

Termite Resistant PVC

Nom. Cross-section of conductor

Strands

No./Dia. Of Conductor

Insulation Thickness

Inner Covering Thickness

Dia. Of Armor Wire

Sheath Thickness

Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃)

Testing Voltage A.C

Current Rating

mm²

pc/mm

mm

mm

(mm)

kg/km

Ω /km

kV/5min

In air (A)

In soil(A)

4 × 4

7/0.85

0.7

1.0

0.9

1.8

18.0

699

4.61

3.5

34

45

4 × 6

7/1.04

0.7

1.0

1.25

1.8

19.0

820

3.08

3.5

43

57

4 × 10

7/1.38

0.7

1.0

1.25

1.8

22.0

1233

1.83

3.5

60

77

4 × 16

7/1.78

0.7

1.0

1.6

1.8

24.5

1550

1.15

3.5

83

105

4 × 25

7/2.14

0.9

1.0

1.6

1.8

29.2

2036

0.727

3.5

105

125

4 × 35

7/2.52

0.9

1.0

2.0

1.9

32.5

2501

0.524

3.5

125

155

4 × 50

10/2.52

1.0

1.0

2.0

2.0

33.0

3064

0.387

3.5

160

185

4 × 70

14/2.52

1.1

1.0

2.0

2.1

37.0

3974

0.268

3.5

200

225

4 × 95

19/2.52

1.1

1.2

2.0

2.3

43.0

5032

0.193

3.5

245

270

4 × 120

24/2.52

1.2

1.2

2.5

2.5

45.0

6327

0.153

3.5

285

310

4 × 150

30/2.52

1.4

1.4

2.5

2.7

51.0

7765

0.124

3.5

325

345

4 × 185

37/2.52

1.6

1.4

2.5

2.8

56.0

9205

0.0991

3.5

375

390

4 × 240

48/2.52

1.7

1.4

2.5

3.0

62.0

11444

0.0754

3.5

440

450

4 × 300

61/2.52

1.8

1.6

2.5

3.2

67.0

13830

0.0601

3.5

505

515

4 × 400

61/2.97

2.0

1.6

3.15

3.5

74.0

19673

0.0470

3.5

570

575
