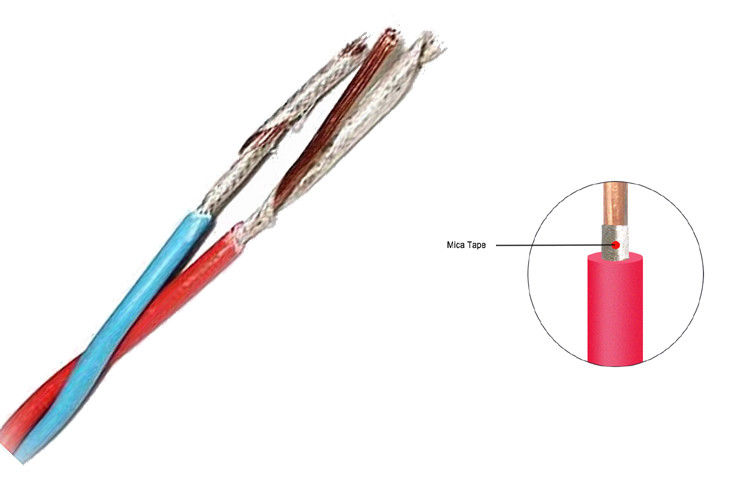

Professional Flame Resistant Cable , Fire Retardant Cable H07V-R THHN/THHW

Professional Flame Resistant Cable , Fire Retardant Cable H07V-R THHN/THHW

Applications

It is fit for AC rated voltage 450/750 and below of domestic electrical appliances of smaller size motorcade tools of instruments of various meters and motorized lighting installations.and suitable to be used in household appliances ,electric tools and lighting in home , office and similar indoor place where request flexible wire.

Standards

International: IEC60520-1

China: GB/T 12706.1-2008

Other standards such as BS,DIN and ICEA upon request

Specifications

1. electric wire and cable

2. Over 20years professional experience

3. reliable repution&famous brand RMJT

1). Rated voltage U0/U 300/500V and 450/750V.

2). The long-time permissible temperature of cable: BV-105 below 105°C,and the other below 70°C.

3). Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160°c.

4). The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0°c.

5). The bend radius: the external diameter of cable <25mm, and the bend radius is above 4 times of the external diameter of

cable. And the other is above 6 times of the external diameter of cable.

6). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.

7). Light weight, perfect bending properties, installed and maintained easily and conveniently.

8). Insulation sheath material and color: PVC in red, black, blue or any color as required.

9). Type: Single or twin cables with different colors Provides OEM according to requests of customer.

Standard

GB 5023 ,IEC 60227,BS 6004

Operating characteristics

1, Long-term allowable operating temperature of cable conductor ≤70°C

2, Highest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): ≤300mm2 cable conductor ≤160°C, ≥300 mm2 cable conductor≤ 140°C.

3, The laying temperature should over 0℃,Permissible bending radius of cable:for single core unarmored cable, shuld be no less than 20 times of it’s outer diameter ; for multi-core unarmored cable, should be no less than 15 times of it’s outer diameter

4, With flame-retardant property,ZA,ZB,ZC,ZD are 4 types

5, The product is applicable for AC 50 Hz transmission and distribution lines with rated voltage of 0.6/1KV

FAQ

1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc

2. Payment: We accept T/T, L/C , just choose what you like

3. Delivery time: Generally 15~25 working days upon receipt deposit. According to the quantity.

4. MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.

Quote Request Information

1. Material of conductor/insulation/sheath.

2. Voltage classes.

3. Cross section, Short circuit current capacity, tension strength.

4. Order Quantity
