DIN EN 60228 class 2 Fire Resistant Cable 0°C to 90°C Operating Temperature

محصولات

کابل مشعل جوشکاری

با ما تماس بگیرید

Mr. Aric

atwood.lee@hold-one.com

86-- 18724796885

حالا تماس بگیرید

DIN EN 60228 class 2 Fire Resistant Cable 0°C to 90°C Operating Temperature

مقدار تولیدی:	1000 متر
قیمت:	US$1.0~120per meter
دوره تحویل:	بسته به مقدار سفارش
روش پرداخت:	اعتبارات اسنادی T/T
ظرفیت عرضه:	30 کیلومتر / ماه

جزئیات اطلاعات

توضیح محصول

اطلاعات دقیق

محل منبع

چين

نام تجاری

QINGDAO YICABLE CABLE

گواهی

KEMA,ISO,CE,IEC,PICC

استاندارد:

IEC502 & IEC332-3

ولتاژ (Uo / U):

0.6 / 1kV

ولتاژ AC:

5 کیلو ولت 5min

تعداد هسته:

1،2،3،4،5

درجه حرارت:

0 درجه سانتی گراد تا 90 درجه سانتی گراد

نمونه:

در دسترس

برجسته کردن:

fire rated cable,fire proof electrical cable

fire proof electrical cable

توضیح محصول

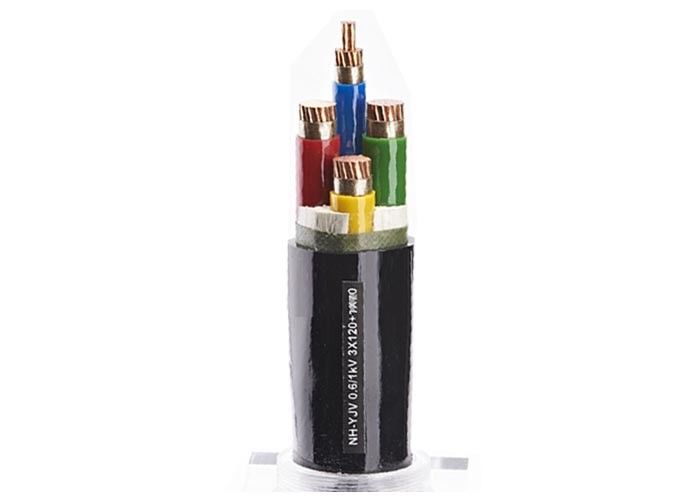

CU/XLPE/PVC 0.6/1kV Fire Retardant Fire Resistant FRC Power Cable

Our company can produce both flame retardant and non-flame retardant series of XLPE power cable.. Our products can be produced according to our works specifications which are equivalent to GB12706, IEC60502, IEC60332, IEC60754, and its some indexes are superior to standards stated above..

The flame-retardant cable covers all kinds of low-smoke low-halogen, low-smoke halogen free and three classes of A, B, C. We can design and manufacture special XLPE cable according to the other standards require by the customers, such as heavy section cut part conductors, water-resistant, defend termites, defend mouse, and so on..

Main properties

No	Test item				Property
1	Construction				Listed to the tables
2	Conductor resistance				Listed to the tables
3	Voltage test		A.C 3.5kV 5min		No breaken
4	Mechanical properties before aging	Tensile strength		Insulation	Min.12.5N/mm²
				Sheath	Min.12.5N/mm²
		Elongation at break		Insulation	Min.150%
				Sheath	Min.150%
	Mechanical properties after aging	Tensile strength		Insulation	100°C±2°C 7days Min.±12.5N/mm²
				Sheath	100°C±2°C 7days Min.±12.5N/mm²
		Varying valve of tensile strength		Insulation	100°C±2°C 7days Min.±25%
				Sheath	100°C±2°C 7days Min.±25%
		Elongation at break		Insulation	100°C±2°C 7days Min.±150%
				Sheath	100°C±2°C 7days Min.±150%
		Varying valve of tensile strength		Insulation	100°C±2°C 7days Min.±25%
				Sheath	100°C±2°C 7days Min.±25%
5	Flame-retardant property				Comply with GB12666.5-90(CB) and IEC332-3(CB)
6	Constant of insulation resistivity		Min at 20°C		36.7
	Ki MΩ.km		Min at 70°C		0.037

Standards:

IEC 60502, 60332, 60331

DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)

Model Explanation:

Model	Nominal Cross Section (mm2)
Model	Single Core	Two Core	Three Core	Four Core	Five Core
NH-VV NH-YJV	1.5-800	1.5-800	1.5-800	1.5-800	1.5-800
NH-VV22 NH-YJV22	6-400	4-300	4-300	4-300	4-300
NH-VV32 NH-YJV32	10-800	4-300	4-300	4-300	4-300

FAQ

Q:	How long does it take to get a quote back?
A:	Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.

Q:	Do you custom package?
A:	We strive to meet our customers' needs and therefore have no problem meeting most specifications. We can reel into coils, disposable cartons, special reels, or load your wire and cable into reusable plastic containers. Please check with your sales representative first to verify we can meet your need.

Q:	What warranties do your products carry?
A:	SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties.

Q:	Do you sell other products besides wire and cable?
A:	Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world

DIN EN 60228 class 2 Fire Resistant Cable 0°C to 90°C Operating Temperature 0
