Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2

محل منبع	چين
نام تجاری	QINGDAO YICABLE CABLE
گواهی	CE/KEMA/CCC/TUV

جزئیات محصول

خودی:

پی وی سی

غلاف:

پی وی سی

مواد:

مس آنیل

نوع هادی:

انعطاف پذیر کلاس 5

هسته:

4 تا 61

اندازه:

0.5mm2 تا 10mm2

نوع رشته:

بسته نرم افزاری

رنگ:

سیاه یا خاکستری

برجسته کردن:

multicore power cable

multi core electrical cable

Payment & Shipping Terms

مقدار حداقل تعداد سفارش

1000 متر

قیمت

USD 0.4 To 10.5 per Meter

جزئیات بسته بندی

100/200 متر در هر رول یا طبل های فلزی چوبی

زمان تحویل

10-15 روز

قابلیت ارائه

8 کیلومتر در روز

توضیح محصول

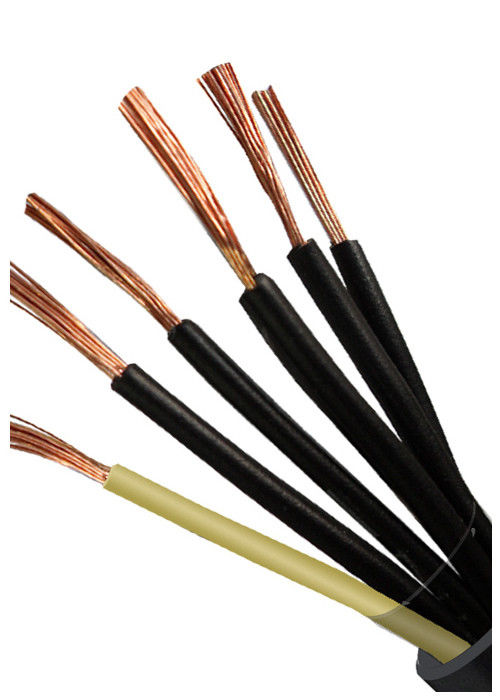

Control Class 5 Copper Conductor Cable Black Color 0.5mm2 - 10mm2

Construction:

Conductor: Class 5 Copper Conductor

Insualtion: PVC

Sheath: PVC

Standard:

IEC Standard: IEC 60227, IEC60228

China Standard: GB9330

Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage: 450/750V

Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 6 x cable O.D

Certificates

CE, RoHS, CCC, KEMA and more others at request

Application:

Suitable for being laid indoors, in cable trench, pipelines or other specific occasions and High performance soft place

Specifications:

Cross-Sectional Area mm2	Thickness of Insulation	Thickness of Sheath	Overall Diameter		Min resistance of insulation at 70℃ MΩ/km	Max.D.C resistance of at 20℃ MΩ/km
Cross-Sectional Area mm2	Thickness of Insulation	Thickness of Sheath	min	max	Min resistance of insulation at 70℃ MΩ/km	Max.D.C resistance of at 20℃ MΩ/km
4x0.5	0.6	1.2	7.3	9.2	0.013	39
4x0.75	0.6	1.2	7.6	9.6	0.011	26
4x1.0	0.6	1.2	8	10	0.01	19.5
4x1.5	0.7	1.2	9	11.3	0.01	13.3
4x2.5	0.8	1.2	10.5	13.1	0.009	7.98
5x0.75	0.6	1.2	7.9	9.9	0.013	26
5x1.0	0.6	1.2	8.3	10.3	0.011	19.5
5x1.5	0.7	1.2	9.8	12.2	0.01	13.3
5x2.5	0.8	1.5	11.5	14.3	0.009	7.98
7x0.5	0.6	1.2	8.5	10.6	0.013	39
7x0.75	0.6	1.2	8.9	11.1	0.011	26
7x1.0	0.6	1.2	9.3	11.7	0.01	19.5
7x1.5	0.7	1.2	10.6	13.2	0.01	13.3
7x2.5	0.8	1.5	13.1	16.2	0.009	7.98
