Five-Core Low Voltage XLPE Insulated Power Cable IEC 60502-1 Standard

Five-Core Low Voltage XLPE Insulated Power Cable IEC 60502-1 Standard

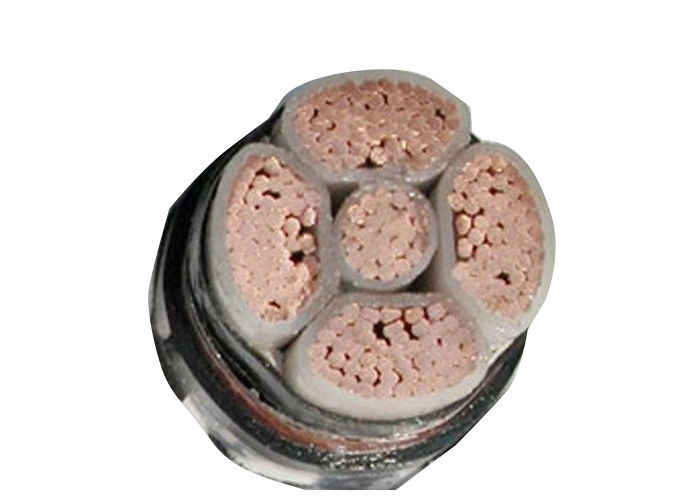

Construction

Conductor: Annealed Copper Conductor as per IEC 60228

≤6mm2 solid (class 1) or stranded (class 2)

＞6mm2 stranded (class 2)

Flexible conductor (class 5) optional.

Insulation: PVC (polyvinyl chloride) rated at 75℃

Metallic Screen optional: Copper tape or copper wires braiding optional

Armored optional: Aluminum wire or stainless steel tape for single core cable, Steel wire or steel tape for multi core cable

Sheath: PVC or FR-PVC type ST2 to IEC 60502, black or red or customization

Applications

XLPE Insulated Cable is used as power distribution and transmission line at rated voltage 0.6/1KV.

Used outside as energy utility and lighting cables, in cable ducts, underground, under normal and salty water if specially made.

Standards

International: IEC 60502-1, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS, DIN and ICEA upon request

Technical Specifications

Packing and shipping: We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

After-service commitment: Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:

1. Customer is God. We will cherish every client, every cooperation by heart.

2. Free pre-sales service. We will provide best proposal for each client.

3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning technical advisory service when establish cooperation relationship with clients.

4. Thoughtful after sales service. Our product are warranted by PICC (People's Insurance Company of China). We will provide free maintaining and debugging within 12 month after installation(except for the wrong using).

5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.

6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
